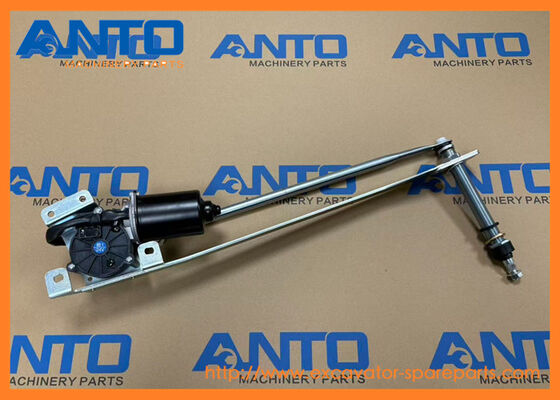

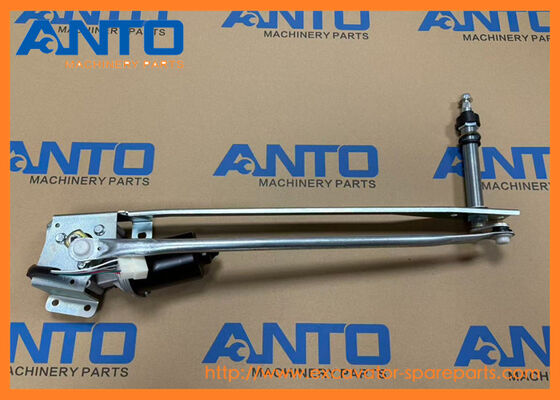

- 560-3925 5603925 24V Wiper Motor Excavator Spare Parts Fit For C7.1 C9.3B 330 336 340
| Name |
Wiper Motor |
| Parts No |
560-3925 5603925 |
| Machine Model |
CX210 CX240 CX290 CX350 330 336 340 349 352 |
| Category |
Window Wiper Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
- Function & working principle
| 1.Power Input: Receives 24V power from the excavator’s battery/alternator via the cabin wiper switch. |
| 2.Motor & Gearbox: The high‑speed electric motor is slowed down by a worm gear reduction to produce high torque (strong turning force) at low RPM. |
| 3.Motion Conversion: Rotational motion from the gearbox is converted to back‑and‑forth (reciprocating) motion via an internal crank/linkage, which moves the wiper arm. |
| 4.Parking Mechanism: When switched off, the motor automatically parks the wiper blade at the bottom of the windshield (out of the operator’s view). |
| Sumitomo: SH200, SH210, SH240, SH280, SH300 |
| Case/CX: CX210, CX240, CX290, CX350 |
| Kobelco: SK200, SK210, SK250, SK260, SK330, SK350 |
| Hyundai/Robex: R210, R220, R250, R300 |
| Other: Many 20–35 ton excavator cabins using 24V wiper systems |
- More other motor parts fit for C A T machine
| 5268605 MOTOR GP-WINDOW WIPER |
| C A T |
| |
| 5268604 MOTOR AS-WINDOW WIPER |
| C A T |
| |
| 5237587 MOTOR GP-ELECTRIC |
| C A T |
| |
| 5215064 MOTOR GP-GEROTOR |
| C A T |
| |
| 5208338 MOTOR-ELECTRIC |
| C A T |
| |
| 3337397 MOTOR GP-WINDOW WIPER |
| C A T |
| |
| 5689802 MOTOR & MTG GP-TRAVEL |
| C A T |
| |
| 5689405 MOTOR GP-PISTON |
| C A T |
| |
| 5680534 MOTOR & MOUNTING GP |
| C A T |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
560-3925 |
[1] |
MOTOR AS |
|
| 2 |
488-6512 |
[1] |
LINES GP-WINDOW WASHER |
|
| |
500-0729 |
[1] |
HOLDER |
|
| |
9X-2044 M |
[2] |
SCREW-TRUSS HEAD (M6X1X16-MM) |
|
| |
144-0195 E |
|
HOSE (178-CM) |
|
| |
383-5631 |
[1] |
NOZZLE |
|
| 3 |
564-4992 |
[1] |
CONTROLLER AS |
|
| 4 |
512-6728 |
[1] |
ARM AS-WIPER |
|
| |
488-6506 |
[1] |
ARM AS-WIPER |
|
| |
488-6509 |
[1] |
BLADE AS-WIPER |
|
| 5 |
3E-8020 M |
[2] |
SCREW-TRUSS HEAD (M6X1X25-MM) |
|
| 6 |
9X-2042 M |
[4] |
SCREW-TRUSS HEAD (M6X1X12-MM) |
|
| 7 |
9X-2044 M |
[2] |
SCREW-TRUSS HEAD (M6X1X16-MM) |
|
| 8 |
526-8641 |
[1] |
INSULATION |
|
| |
E |
|
ORDER BY THE CENTIMETER |
|
| |
M |
|
METRIC PART |
|
It is usually composed of a cylinder block, pistons, connecting rods, crank - shaft, and other components. The cylinder block is the main body of
the motor, in which the pistons move. The pistons are connected to the crank - shaft through connecting rods. The precision - made pistons and
cylinder block, as well as the reasonable design of the connecting rod and crank - shaft, can ensure the efficient operation of the motor and the
stable output of torque.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
