| Category |
Air Conditioner Parts,Engine Parts |
| Name |

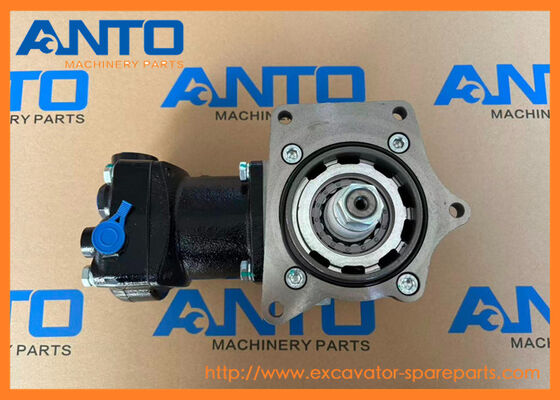

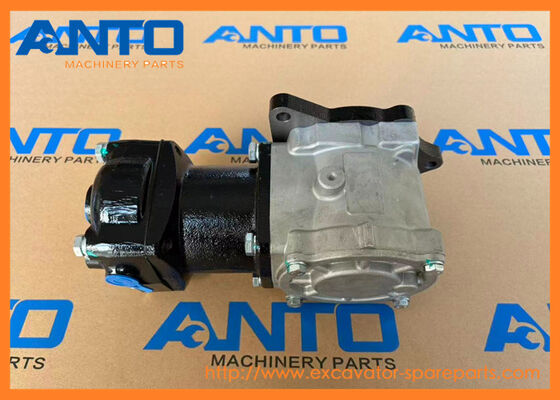

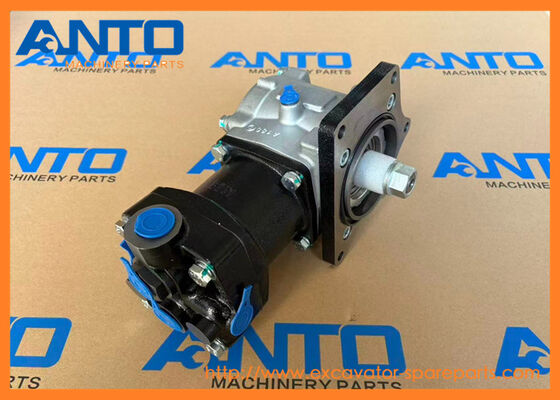

Air Compressor Assy |
| Parts No |
6210-81-3113 6210-81-3110 6210-81-3111 6210-81-3112 |
| Machine Number |
PC650-3 PC650LC-3 WA500-1L |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Power Input: The compressor is driven by the engine camshaft via a gear train. As the engine runs, it drives the compressor crankshaft to rotate. |
| 2. Air Intake & Compression: The rotating crankshaft drives pistons to reciprocate in cylinders. During the intake stroke, atmospheric air is drawn into the cylinder through the air filter; during the compression stroke, the piston compresses the air to the rated pressure (0.8–1.0 MPa). |
| 3. Pressure Regulation: When the system air pressure reaches the preset value, the pressure regulator triggers the unloader valve to open, allowing compressed air to recirculate to the intake side. The compressor runs in an unloaded state to save energy. |
| 4. Air Supply: When system pressure drops below the preset value, the unloader valve closes, and the compressor resumes air compression, supplying compressed air to the machine’s pneumatic system (brakes, air conditioning, etc.). |
| Core Functions |
1. Safety-Critical Air Supply: Provides stable compressed air for the machine’s brake system (service and parking brakes), which is essential for safe operation of large excavators and dump trucks |
| 2. Auxiliary Pneumatic Power: Supplies air for cabin air conditioning, pneumatic grease guns, and tire inflation systems, improving operator comfort and equipment maintenance efficiency |
| 3. Energy-Saving Regulation: The integrated pressure regulator automatically switches between loaded and unloaded modes, reducing engine fuel consumption |
| 4. Reliable Continuous Operation: Designed for 24-hour duty cycles to meet the non-stop operation needs of mining and large construction projects |
ENGINES S6D140E Komatsu
- More other compressor applied to KOMATSU heavey machine
| 6210-81-3112 AIR COMPRESSOR ASS'Y,(SEE FIG.711B) |
| S6D140, SA6D140, SAA6D140E |
| |
| 6631-81-8300 AIR CLEANER ASS'Y |
| S6D125E |
| |
| 6151-81-7770 AIR CLEANER ASS'Y |
| S6D125 |
| |
| 6138-81-3112 AIR COMPRESSOR ASS'Y |
| S6D110, SA6D110 |
| |
| 6136-81-3112 AIR COMPRESSOR ASS'Y |
| S6D105 |
| |
| 6131-82-7300 AIR CLEANER ASS'Y |
| S4D105 |
| |
| 6215-81-3201 AIR COMPRESSOR A. |
| SA12V140, WA800, WA900 |
| |
| 6215-81-3101 AIR COMPRESSOR A. |
| SA12V140, WA800, WA900 |
| |
| 6207-81-7230 AIR CLEANER ASS'Y |
| S6D95L |
| |
| 6162-83-6800 AIR COMPRESSOR ASS'Y |
| S6D170 |
| |
| 6162-83-6600 AIR COMPRESSOR ASS'Y |
| S6D170, SA6D170, SA6D170E, SAA6D170E, WA600, WA700 |
| |
| 6210-81-3121 AIR COMPRESSOR ASS'Y,(SEE FIG.0711B) |
| S6D140, SA6D140, SAA6D140E |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
6210-81-3113 |
[1] |
AIR COMPRESSOR ASS'Y Komatsu |
11.9 kg. |
| |
|
|
["SN: 23535-UP"] analogs:["6210813110", "6210813111", "6210813112"] |$1. |
|
| 1. |
DK487000-6500 |
[1] |
CASE,CRANK Komatsu |
1.131 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 2. |
DK487653-0300 |
[1] |
CRANKSHAFT Komatsu |
2.103 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 3. |
DK035620-6000 |
[1] |
BEARING Komatsu |
0.21 kg. |
| |
|
|
["SN: 23535-UP"] analogs:["DK0166602640"] |
|
| 4. |
DK036202-0700 |
[1] |
BEARING Komatsu |
0.31 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 5. |
DK487003-7301 |
[1] |
COVER Komatsu |
0.355 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 6. |
DK487061-4300 |
[1] |
O-RING (K8) Komatsu |
0.003 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 7. |
DK487061-4500 |
[1] |
O-RING (K8) Komatsu |
0.005 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 8. |
DK487061-3700 |
[1] |
O-RING (K8) Komatsu |
0.002 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 9. |
DK487001-3200 |
[1] |
CYLINDER Komatsu |
2.153 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 10. |
DK487013-2100 |
[1] |
CONNECTING ROD A. Komatsu |
0.12 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 11. |
DK487009-2000 |
[1] |
PISTON Komatsu |
0.32 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 12. |
DK487010-4720 |
[1] |
RING KIT,PISTON Komatsu |
0.06 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 13. |
DK487012-0100 |
[1] |
PIN,PISTON Komatsu |
0.06 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 14. |
DK016110-1610 |
[2] |
RING,SNAP Komatsu |
0.005 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 15. |
DK487020-2200 |
[1] |
GASKET (K8) Komatsu |
0.02 kg. |
| |
|
|
["SN: 23535-UP"] analogs:["DK4870203800"] |
|
| |
DK487018-5222 |
[1] |
CYLINDER HEAD ASS'Y Komatsu |
2 kg. |
| |
|
|
["SN: 23535-UP"] analogs:["DK4870185220"] |$18. |
|
| |
DK487018-5321 |
[1] |
CYLINDER HEAD A. Komatsu China |
|
| |
|
|
["SN: 23535-UP"] analogs:["DK4870185320"] |$19. |
|
| 16 |
DK487018-5300 |
[1] |
HEAD,CYLINDER Komatsu |
2.381 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 17 |
DK487061-4000 |
[1] |
O-RING (K8) Komatsu |
0.003 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 18 |
DK487042-1100 |
[1] |
GUIDE,SPRING Komatsu |
0.196 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 19 |
DK487061-4100 |
[1] |
O-RING (K8) Komatsu |
0.004 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 20 |
DK487031-2000 |
[1] |
SPRING,DELIVERY VALVE Komatsu China |
|
| |
|
|
["SN: 23535-UP"] |
|
| 21 |
DK487026-1700 |
[1] |
VALVE,PLATE Komatsu China |
|
| |
|
|
["SN: 23535-UP"] |
|
| 22 |
DK487030-2200 |
[1] |
SEAT,DELIVERY VALVE Komatsu China |
|
| |
|
|
["SN: 23535-UP"] |
|
| 23 |
DK487024-1300 |
[1] |
SPRING,UNLOADER VALVE Komatsu China |
|
| |
|
|
["SN: 23535-UP"] |
|
| 24 |
DK487039-0300 |
[1] |
GASKET (K8) Komatsu |
0.004 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 25 |
DK487025-1000 |
[1] |
SEAT,INTAKE VALVE Komatsu China |
|
| |
|
|
["SN: 23535-UP"] analogs:["DK4870251200"] |
|
| 26 |
DK487026-2800 |
[1] |
VALVE,PLATE Komatsu |
0.01 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 27 |
DK487027-1200 |
[1] |
SPRING,INTAKE VALVE Komatsu China |
|
| |
|
|
["SN: 23535-UP"] |
|
| 28 |
DK487028-2700 |
[1] |
GUIDE,INTAKE VALVE Komatsu China |
|
| |
|
|
["SN: 23535-UP"] analogs:["DK4870281700"] |
|
| 29 |
DK487021-5020 |
[1] |
UNLOADER VALVE A. Komatsu |
0.136 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 30. |
DK487073-0900 |
[1] |
FLANGE Komatsu China |
|
| |
|
|
["SN: 23535-UP"] |
|
| 31. |
DK156603-4400 |
[4] |
BOLT Komatsu |
0.027 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 32. |
DK010110-2570 |
[4] |
BOLT Komatsu |
0.025 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 33. |
DK487088-0000 |
[2] |
BOLT Komatsu |
0.04 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 34. |
DK014110-8440 |
[4] |
WASHER,SPRING Komatsu |
0.002 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 35. |
DK014111-0440 |
[4] |
WASHER,SPRING Komatsu |
0.004 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 36. |
DK487351-0800 |
[4] |
WASHER,SPRING Komatsu |
0.005 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 37. |
DK014020-8140 |
[4] |
WASHER Komatsu China |
|
| |
|
|
["SN: 23535-UP"] |
|
| 38. |
DK487017-1600 |
[4] |
BOLT Komatsu |
0.021 kg. |
| |
|
|
["SN: 23535-UP"] |
|
| 39. |
DK487088-0100 |
[2] |
BOLT Komatsu China |
|
| |
|
|
["SN: 23535-UP"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
