| Category |
Engine Parts |
| Name |

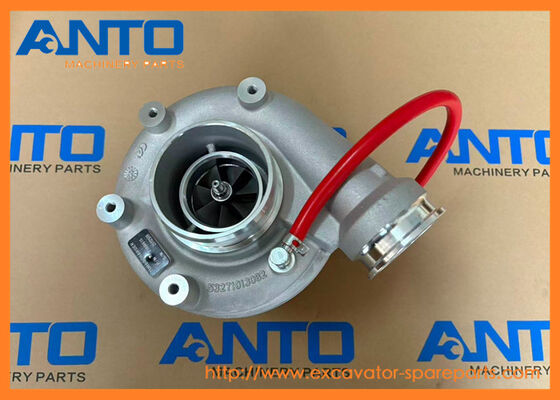

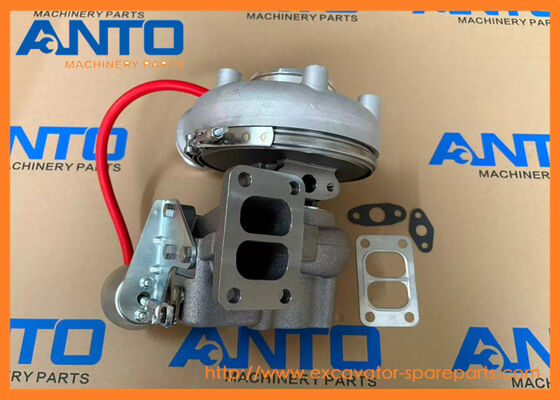

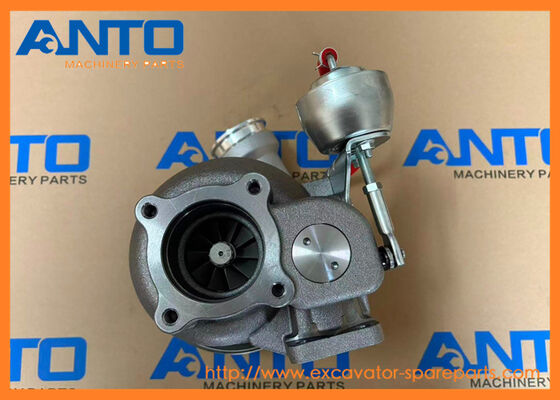

Turbocharger |
| Parts No |
22205087 21496615 |
| Machine Number |
L110F L120E L120F L120G Z L105 G940 G946 G970 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Exhaust-Driven Turbine: Hot exhaust gas from the engine flows through the turbine housing, spinning the turbine wheel (150,000+ RPM). |
| 2. Compressor Operation: The turbine wheel is connected to a coaxial compressor wheel, which draws in ambient air and compresses it (boost pressure: 2.5–3.0 bar). |
| 3. Air Cooling: Compressed air passes through an intercooler to reduce temperature (denser air = more oxygen for combustion). |
| 4. Wastegate Regulation: When boost pressure exceeds the set limit, the pneumatic actuator opens the wastegate, diverting excess exhaust gas around the turbine to slow it down – maintaining safe boost levels. |
| 5. Power Enhancement: Denser, cooler air enters the engine’s combustion chamber, allowing more fuel to be burned efficiently – increasing power output by 30–40% and improving fuel efficiency by 10–15% vs. naturally aspirated engines. |
| Core Functions |
1. Power Boost: Increases engine horsepower and torque (critical for heavy-load tasks like digging, hauling, and climbing) |
| 2. Fuel Efficiency: Optimizes combustion by delivering more oxygen – reduces fuel consumption and exhaust emissions (meets Euro V/Stage IV standards) |
| 3. Altitude Compensation: Maintains engine performance at high altitudes (where air density is low) |
| 4. Emission Control: Improves fuel atomization and combustion completeness – reduces NOₓ and particulate matter (PM) emissions |
| 5. Engine Protection: Wastegate prevents overboost, avoiding engine damage from excessive cylinder pressure |
LOADERSL110E L110F L120E L120F L120G Z L105
MOTOR GRADERS G940 G946 G970 G976 G930 G990 G960 Vo.lvo.
- More other turbocharger applied to V O L V O heavey machine
| VOE17467114 Turbocharger |
| .Heavy |
| |
| VOE17431000 Turbocharger |
| Heavy |
| |
| VOE17229091 Turbocharger |
| Heavy |
| |
| VOE17475212 Turbocharger |
| A60H |
| |
| VOE22714902 Turbocharger |
| DD105 |
| |
| VOE22918832 Turbocharger |
| Heavy |
| |
| VOE22918829 Turbocharger |
| Heavy |
| |
| VOE22918827 Turbocharger |
| Heavy |
| |
| VOE22840560 Turbocharger |
| Heavy |
| |
| VOE22303590 Turbocharger |
| Heavy |
| |
| VOE22224630 Turbocharger |
| Heavy |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
VOE22205087 |
[1] |
Turbocharger |
S/N -11605639 SEE SB 255 WLO 035 |
| 1 |
VOE22283480 |
[1] |
Turbocharger |
S/N 11605640- |
| 2 |
VOE22067368 |
[1] |
Breather pipe |
|
| 3 |
VOE20405568 |
[1] |
Clip |
|
| 4 |
VOE20834570 |
[1] |
Retainer |
|
| 5 |
VOE21619223 |
[1] |
Hose retainer |
|
| 6 |
VOE21593670 |
[1] |
Return line |
|
| 7 |
VOE20405822 |
[1] |
Sealing ring |
|
| 8 |
VOE21242584 |
[1] |
Gasket |
|
| 9 |
VOE20405885 |
[2] |
Screw |
|
| 10 |
VOE21511617 |
[1] |
Bracket |
|
| 11 |
VOE20405792 |
[1] |
Screw |
|
| 12 |
VOE21552542 |
[1] |
Oil line |
|
| 13 |
VOE22362192 |
[2] |
Attachment kit |
|
| 14 |
VOE13947621 |
[4] |
Plane gasket |
|
| 15 |
VOE20450987 |
[1] |
Clamp |
|
| 16 |
VOE20405792 |
[1] |
Screw |
|
| 17 |
VOE20792408 |
[1] |
Gasket |
|
| 18 |
VOE20412314 |
[4] |
Stud |
|
| 19 |
VOE20412308 |
[4] |
Hexagon nut |
|
| 20 |
VOE21793270 |
[1] |
Gasket |
|
| 21 |
VOE20412314 |
[4] |
Stud |
|
| 22 |
VOE20412308 |
[4] |
Hexagon nut |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
