| Category |
JCB Spare Parts |
| Name |

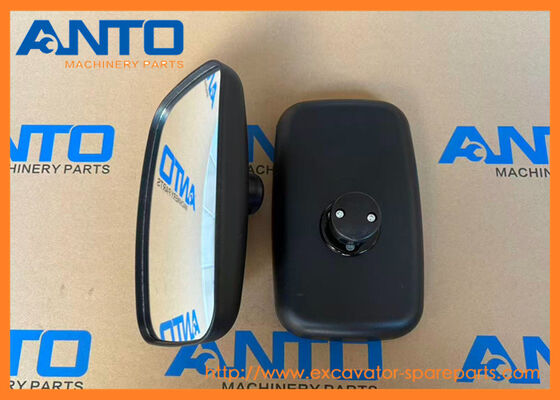

Mirror |
| Parts No |
331/41860 332/J7324 |
| Machine Number |
413K 413S 417 418S 419S TM320 TM320S TM320W |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Mounting & Alignment: The mirror is bolted to the JCB cab frame (left/right side) via a steel mounting base; the adjustable arm and pivot joints allow the operator to tilt/rotate the glass to align with their line of sight. |
| 2. Visibility Enhancement: Convex glass distorts the image slightly to expand the field of view (covering blind spots like the rear of the backhoe or telehandler boom), while flat glass provides accurate distance perception for rear viewing. |
| 3. Durability in Operation: The zinc-plated steel arm and ABS backing plate resist vibration, impact, and corrosion – ensuring the mirror maintains alignment and clarity even during heavy-duty operation (e.g., digging, lifting, off-road travel). |
| Core Functions |
1. Blind Spot Elimination: Convex glass covers 120° of the machine’s surroundings – prevents collisions with personnel, other equipment, or job site obstacles |
| 2. Operator Safety: Unobstructed rear/side visibility reduces the risk of accidents during maneuvering (e.g., reversing a backhoe loader) |
| 3. Weather/Impact Resistance: Shatterproof glass and corrosion-resistant materials minimize downtime from mirror damage |
| 4. Ergonomic Adjustment: Multi-axis joints let operators customize the mirror angle to their height/position – reduces eye strain during long shifts |
EXCAVATORS 4160 4190 4220 7170 7200 7230 7270 8250 8280 8310 413K 413S 417 418S 419S TM320 TM320S TM320W JCB
- More other mirror applied to JCB heavey machine
| 331/66800 Mirror Arm |
| JCB |
| |
| 331/66799 Mirror Wing |
| JCB |
| |
| 333/Z3440 Mirror . |
| JCB |
| |
| 353/01556 Mirror |
| JCB |
| |
| 128/13595 Mirror assembly L.H. |
| JCB |
| |
| 128/13596 Mirror assembly R.H. |
| JCB |
| |
| 123/04078 Mirror interior |
| JCB |
| |
| 332/S3980 Mirror remote heated 12Volt |
| JCB |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
